Linksys E900 how to port forwarding

How to port forwarding (Wireless-N300) Linksys E900 router. Please update firmware is old user. You can download the new firmware from, "Download" menu in the E900 router support page.

Setting before, please fix the IP address of the PC you want to open or port. IP address is 192.168.1.50. Subnet mask is 255.255.255.0. The default gateway is 192.168.1.1. DNS is 192.168.1.1. Windows7 VISTA

Open the router setup screen. The URL of the browser of your computer, Enter by typing http://192.168.1.1/

When the login screen appears, please type "admin" in the password field. The user name is blank.

Open the Applications & Gaming menu to open the Single Port Forwarding menu.

Open port configuration page is opened, the location of the No. 2 figure, type the port number, IP address, and protocol information. Web server and mail server settings that are reserved can be number 1 in the table, and then select a setting.

Case is open port setting of Web Server. Be changed to any number you want to open port 80 in a number of WEB server configuration, you can to forward the port.

  1. Application Name,web.
  2. External Port,80.
  3. Internal Port,80.
  4. Protocol, select TCP.
  5. To IP Address,192.168.1.50.
  6. Enable,Check.
  7. Click Save Setting.

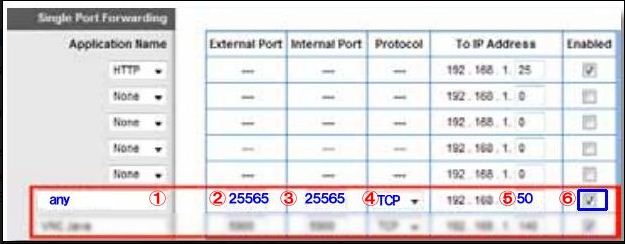

Case is open port setting of Minecraft. It is the setting of the / TCP protocol number 22 565.

  1. Application Name,web.
  2. External Port,25565.
  3. Internal Port,25565.
  4. Protocol, select TCP.
  5. To IP Address,192.168.1.50.
  6. Enable,Check.
  7. Click Save Setting.

PS3/PSVITA applies the DMZ

Please fix the IP address of the game machine. 192.168.1.50, 255.255.255.0, 192.168.1.1, 192.168.1.1, IP address and a subnet mask default router primary DNS and the secondary DNS is blank or 0.0.0.0. PS3 / PSVita.

Open the menu of E900, the Applications and Gaming menu to open the DMZ menu.

  1. Enable,Check.
  2. DMZ Host IP Address,192.168.1.50
  3. Click Save Setting.

Above, DMZ is complete. Even if you complete the DMZ, if the NAT type does not change, please disable the SIP firewall.

Open the Security menu, I open the Firewall menu. Put a check in Disabled the SPI Firewall Protection, is click the Save Settings.
